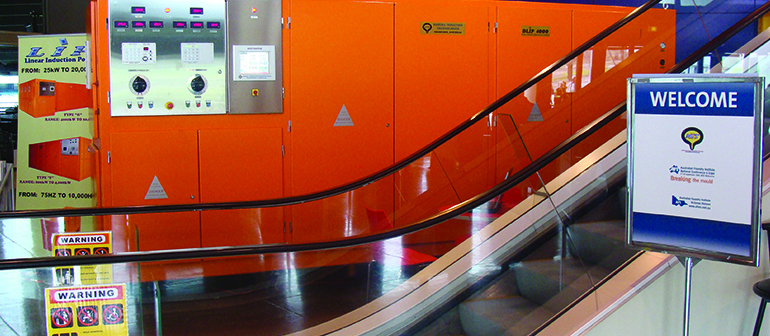

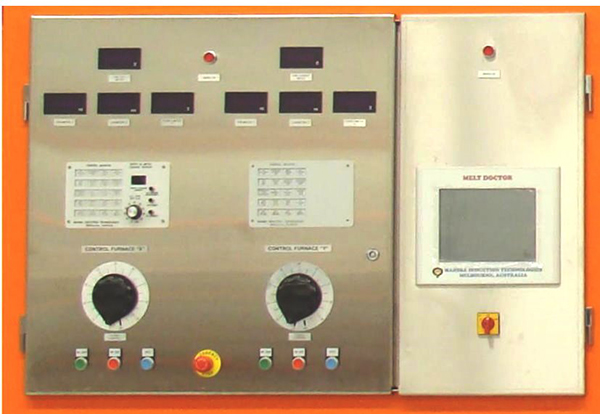

For the manufacturing of large castings, simultaneous operation of two or multiple furnaces enable sintering, analysis, alloying, correction of chemicals composition, pouring over extended period.
Multi Frequency Induction Melting Furnaces In Operation, Frequency range 1500 HZ to 5000 HZ, 200 Kw, Furnace Sizes 50kg-100kg-110kg-150kg,.
Multi Frequency Induction Systems is specially designed to cater to investment casting units for various Ferrous & Non Ferrous Alloys, e.g. Stainless Steel, S.G. Iron Copper & its Alloys, Which have wide applications in Engineering, Process Industries, Automobiles, Aerospace & Defence units. We supply Multi frequency systems to provide flexibility in operations.
Furnaces From 300 Kg To 30 M Ton
FURNACE STRUCTURE & SHUNTS: Rolled steel sections are welded to form hydraulic tilt structure. Shunts are bolted to steel columns centralize the coil, which in turn supports the refractory. Shunts are designed to avoid heating of the other steel parts, reduce stray losses and improve efficiency.
FURNACE COIL: Heavy extruded Rectangular Copper section Coil is designed on computer for extra efficiency, strength & rigidity. Studs brazed to coil are bolted to vertical supports to guard against vibrations & refractory expansion. High voltage insulation on coil avoids inter-turn sparking. Spacers are used to maintain the inter-turn gap.
COOLING COILS: The top & bottom cooling coils made up of stainless steel evenly cool the refractory to minimizing its cracking, spalling & overheating.
MAGNETIC SHIELD: Thick faraday shield is used at the bottom to avoid the bottom overheating. Cooled copper ring at the top reduces stray losses in the top structure.
FREE BOARD: 10 - 20% free board above the coil assists furnace charging without effecting the stirring pattern.
Furnaces From 30 Kg To 4 M Ton
Rigid construction using S.S. plates & high efficiency coil from high conductivity copper make low cost furnaces in the range from 30 Kgs to 4 MT.
Optimally designed coil is supported at four or more places using high strength fiber glass struts and stainless steel tie rods to prevent any movement. Fiber glass taped & Epoxy coated coil rest on precast refractory bottom & it is easily accessed by removing the front/back covers. Precast top of low cement castable refractory, Aluminium plates and stainless tie rods make a rigid structure which is lifted hydraulically up to 95 degree to empty the furnace.
Furnaces From 30 Kg To 4 M Ton
MIT stock most of the components for the different make of Induction furnaces. MIT can offer the spare parts up to 50% less than the other suppliers. Check us out.
Induction Furnace Coil from 25 Kg to 100 Ton furnaces. All our coils are made from special copper section as required for the specific coil. Every coil is insulated with Epoxy coating and High Temperature insulation tapes. The coil support can be as required for coil. Every coil is fully tested prior to the shipment.
MIT stock various Power component in stock for the immediate shipment. MIT also stock SCR, DIODES, Semi Conductor Fuses and Discharge Diode for any make of Induction Furnace. Our Parts are 100% compatible with the original parts and we guarantee them.
Water Cooled Cables for any size and any length. We can also make the water cooled leads with the special fitting if required.
Our range cover either the complete switch or the parts for the furnace selector switch such as moving blades or fixed contacts. We can manufacture the Furnace selector switches either Manual operated or Pneumatic Operated.
